英國 iFi – NEO Stream 發燒級座枱式串流播放器 | Tidal, NAA, Roon Ready | M12、光纖SC、RJ45網絡接口 | I2S輸出 | 可選擇內置解碼 | WiFi 5GHz

$9,699

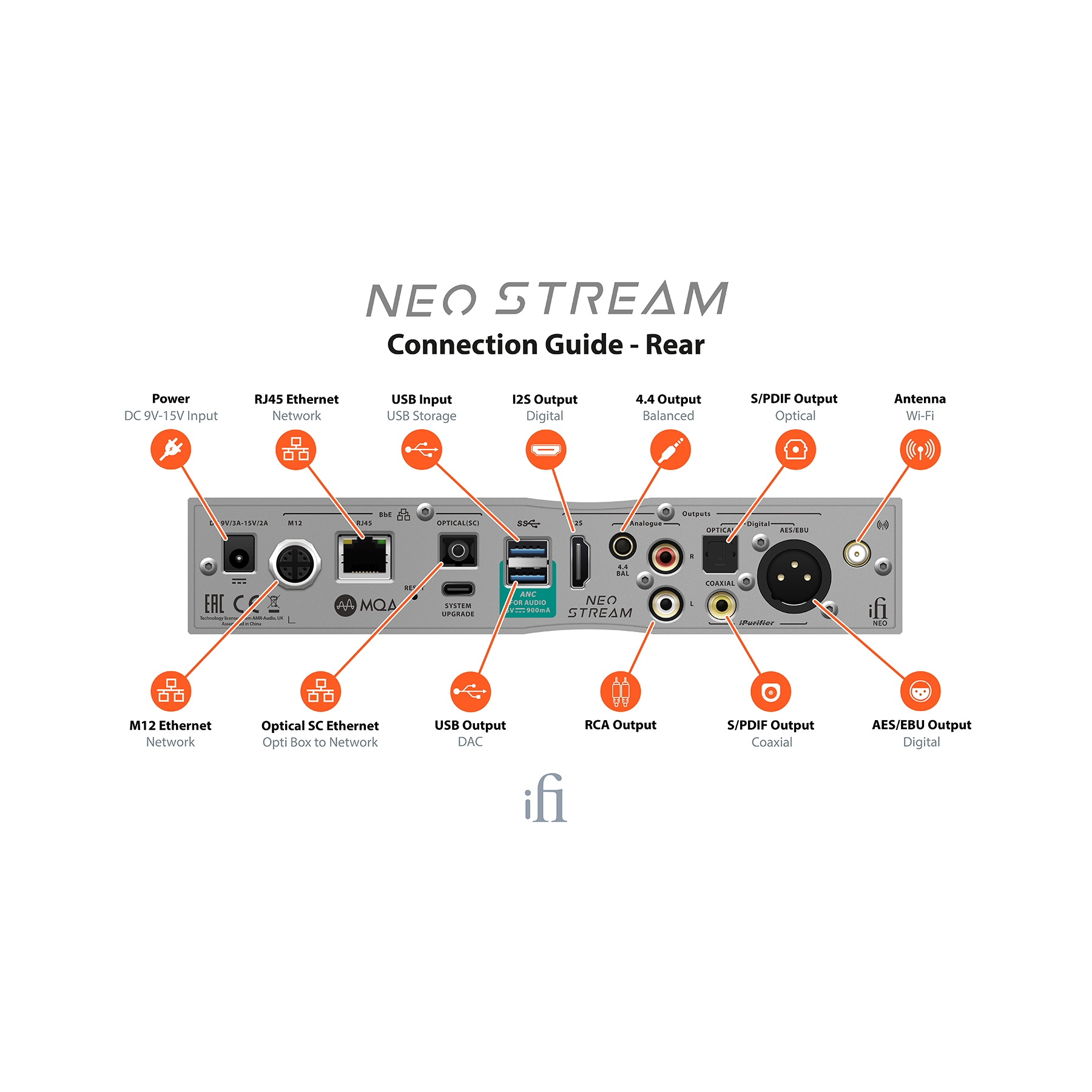

Inputs Wi-Fi
Ethernet (M12 X-code 8-pin/RJ45/Optical)

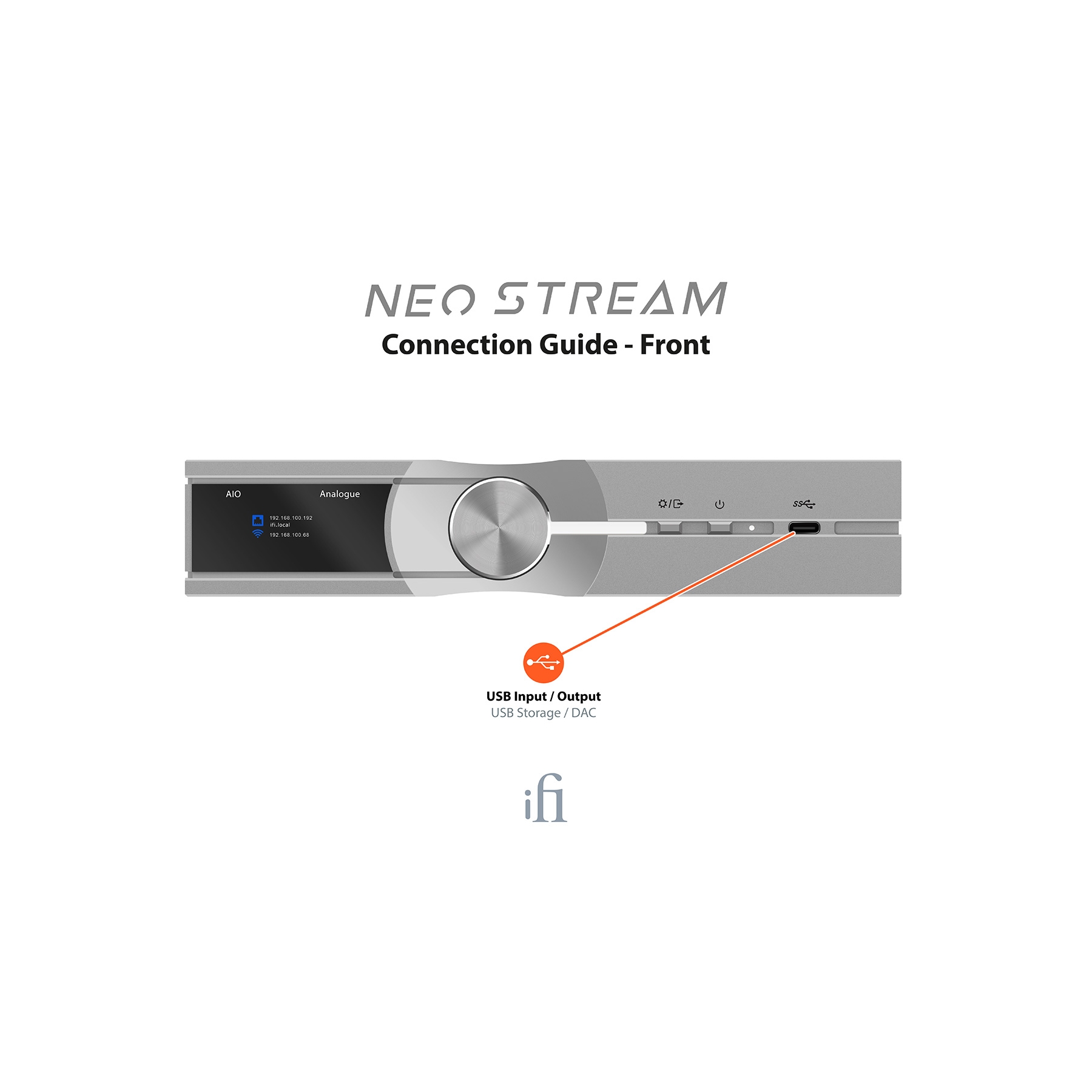

USB-A and USB-C (front panel) (USB DISK, HDD etc.)
Formats DSD: up to 512 / 22.6MHz
PCM: up to 768kHz
MQA: Full Decoder
Analogue output Balanced 4.4mm 4V RMS / UnBAL RCA 2V RMS
Digital output USB-C (front panel)
USB3.0 Type-A Socket x2 (USB2.0 compatible)
S/PDIF Optical (PCM up to 192kHz, 24-bit)
S/PDIF Coaxial (PCM up to 192kHz, 24-bit)
AES/EBU (XLR – single link, PCM up to 192kHz)
I2S via HDMI connector Pinout:
1) Data –
2) Gnd
3) Data +
4) Bck +
5) Gnd
6) Bck
7) Wck –
8) Gnd
9) Wck +
10) Mck +
11) Gnd
12) Mck
13,14,15,16) DSD Enable; L=PCM, H=DSD
17) Gnd
18) 5V Power Enable Output; L=O, H=On
19) N/C
20,21,22,23) GND
Output Impedance Balanced: ≤74Ω
UnBAL: ≤37Ω
SNR <-106dB(A) @ 0dBFS (BAL/UnBAL)
THD + N <0.0025% @ 0dBFS (BAL/UnBAL)
Power supply requirement DC 9V/2.0A, 12V/1.8A, 15V/1.2A* (centre pin +)
Power consumption <0.5W idle, 14W max.
Dimensions 214 x 151 x 41 mm (8.4″ x 5.9″ x 1.6″)
Net weight 1.0 kg (2.26 Ibs)
Limited Warranty 12 months**
*A power supply unit must be able to deliver minimum rated repetitive current
**12 months typical or as permitted/required by local reseller laws.
***Specifations are subject to change without notice.

In stock

Description

英國 iFi

NEO Stream

發燒級座枱式串流播放器 | M12、光纖SC、RJ45網絡接口 | I2S輸出 | 可選擇內置解碼 | WiFi 5GHz





FEATURES

– Ultra-Res Wi-Fi/LAN network audio streamer with integrated DAC

– Open-source architecture – works with multiple control apps, constantly evolving platform support

– Stream the way you want – Tidal Connect, Spotify Connect, Roon Ready, AirPlay, DLNA/UPnP, NAA, and more

– Supports 32-bit/768kHz PCM and DSD512 – not just via USB/LAN cables but Wi-Fi too*

– Full MQA decoding and true-native DSD

– Custom-designed hardware and software – built for exceptional sound

– Fully balanced analog circuitry delivers maximum sonic purity

– Four user-selectable digital filters – tailor the sound to suit your music

– Exclusive’ streaming modes – dedicated Tidal, Roon, NAA, and DLNA modes for optimized performance

– USB and S/PDIF interfaces regulated by Femto-precision clock to eradicate jitter

– Active Noise Cancellation and iPurifer technologies remove distortion from the audio signal

– Optical LAN input isolation technology-enhanced sound quality over a cabled network connection

– SilentLine retina-grade TFT screen with album cover artwork display

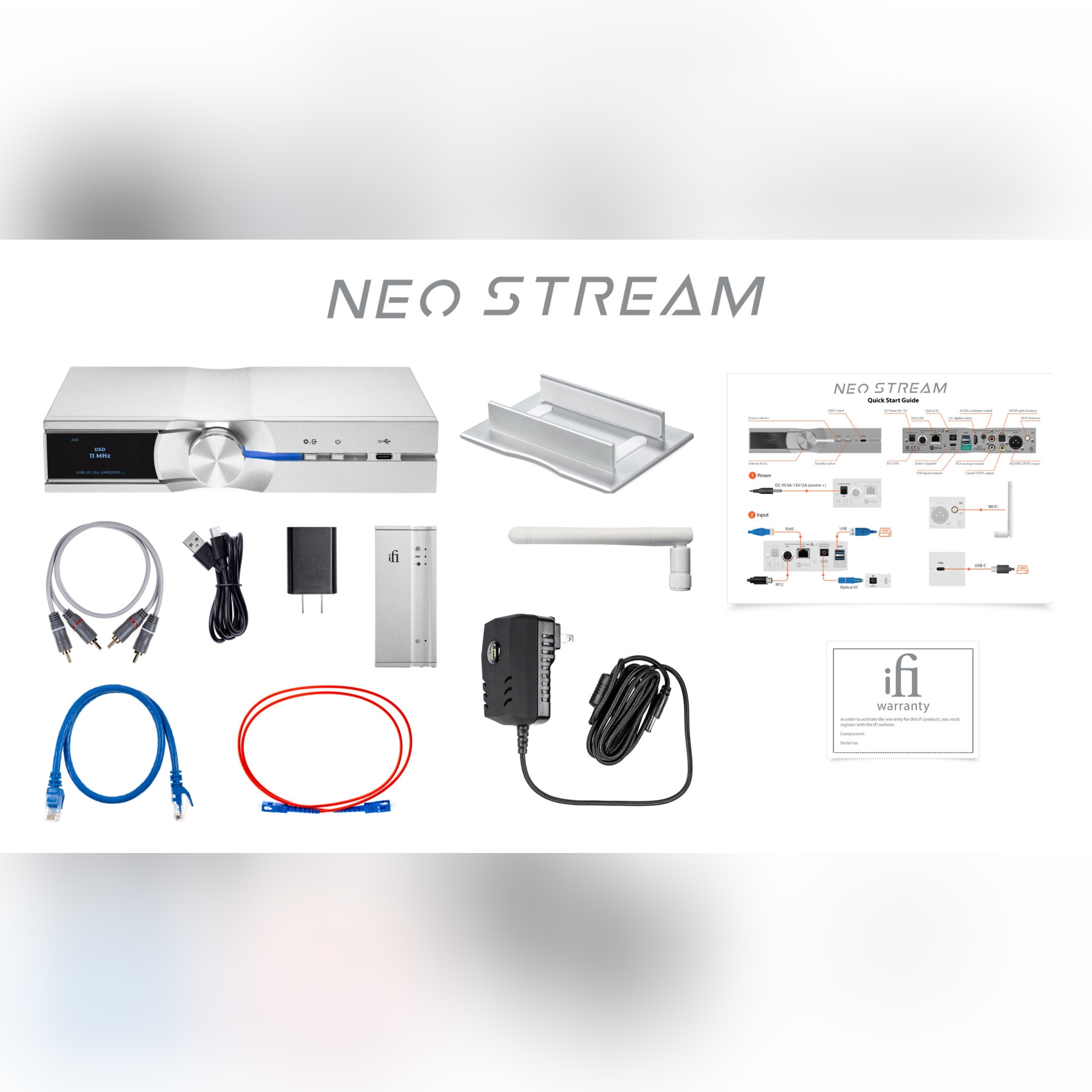

– Ultra-low noise iPower 2 power supply and OptiBox optical LAN transceiver included

* Full-strength 5GHz signal required for 384kHz/DSD256 or above over Wi-Fi





Additional information
品牌

iFi audio

輸入

USB (Type-C), M12 Ethernet, Optical SC Ethernet, RJ45 Ethernet, USB 3.0 (Type A) (Female)

輸出

AES/EBU, Coaxial 同軸 RCA / S/PDIF RCA (Female), Optical 光纖方頭 / S/PDIF TOSLINK (Female), RCA (Line Out), 4.4mm 平衡 (Female), I2S

設計類型

座台式

支援格式-support-format

PCM, DSD, MQA
