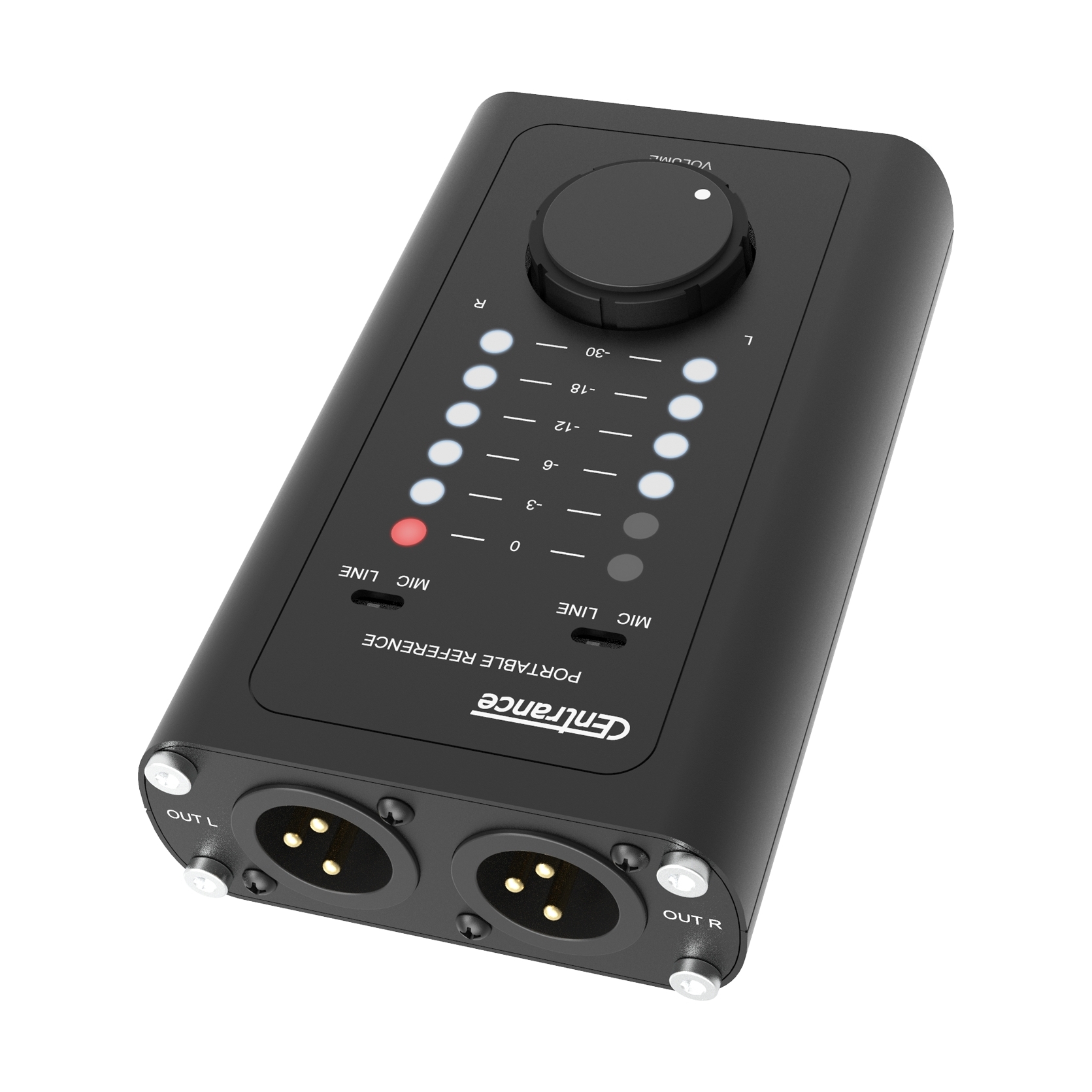

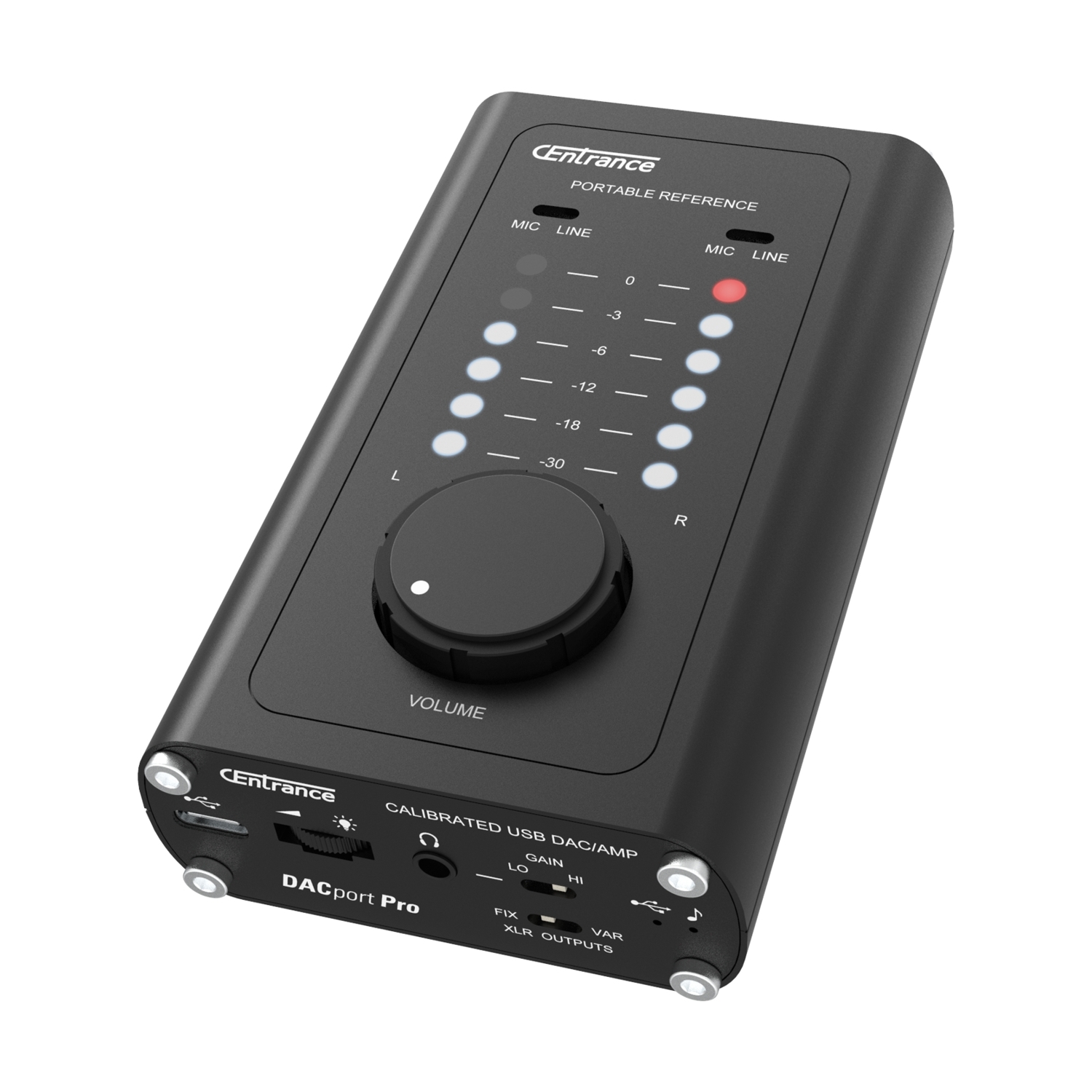

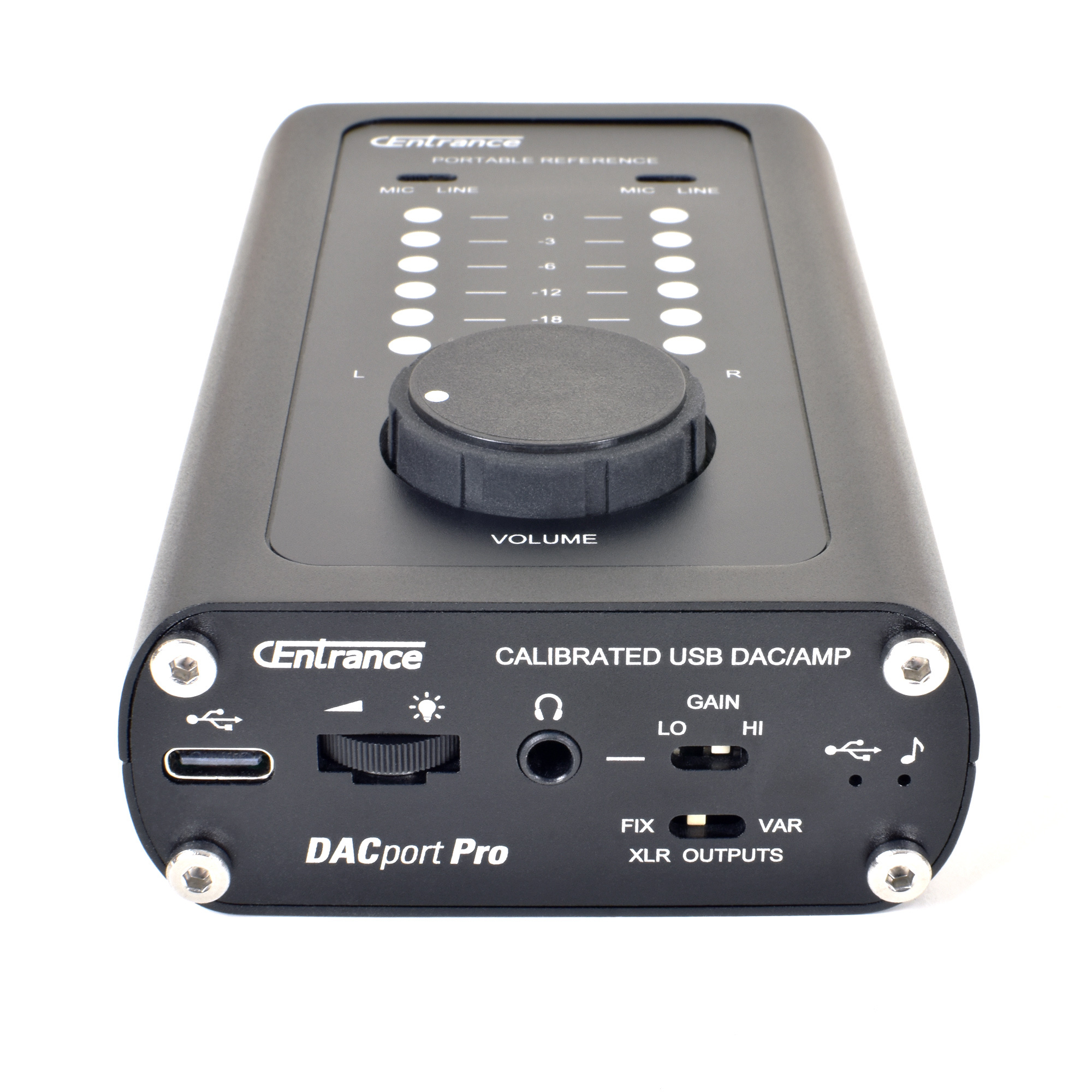

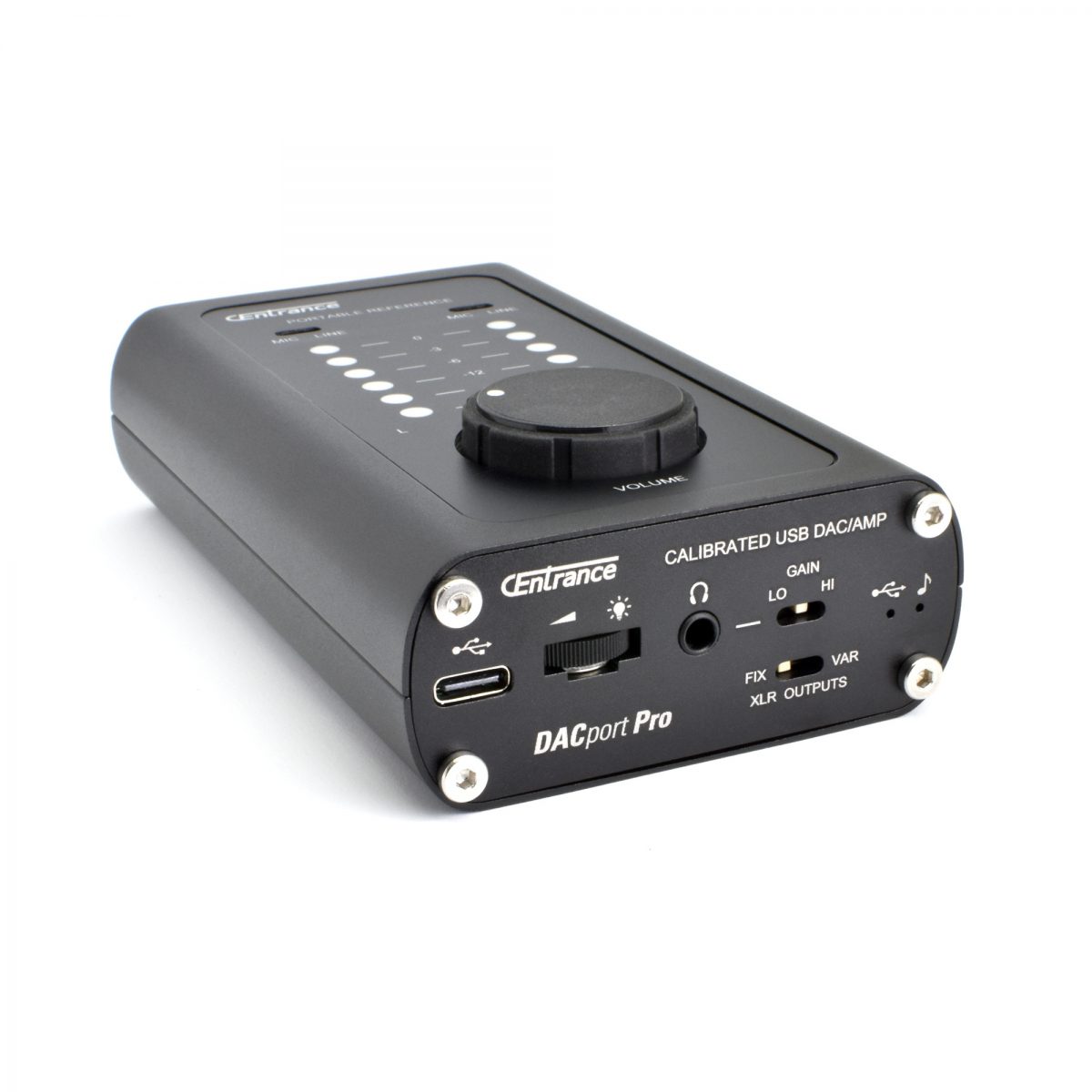

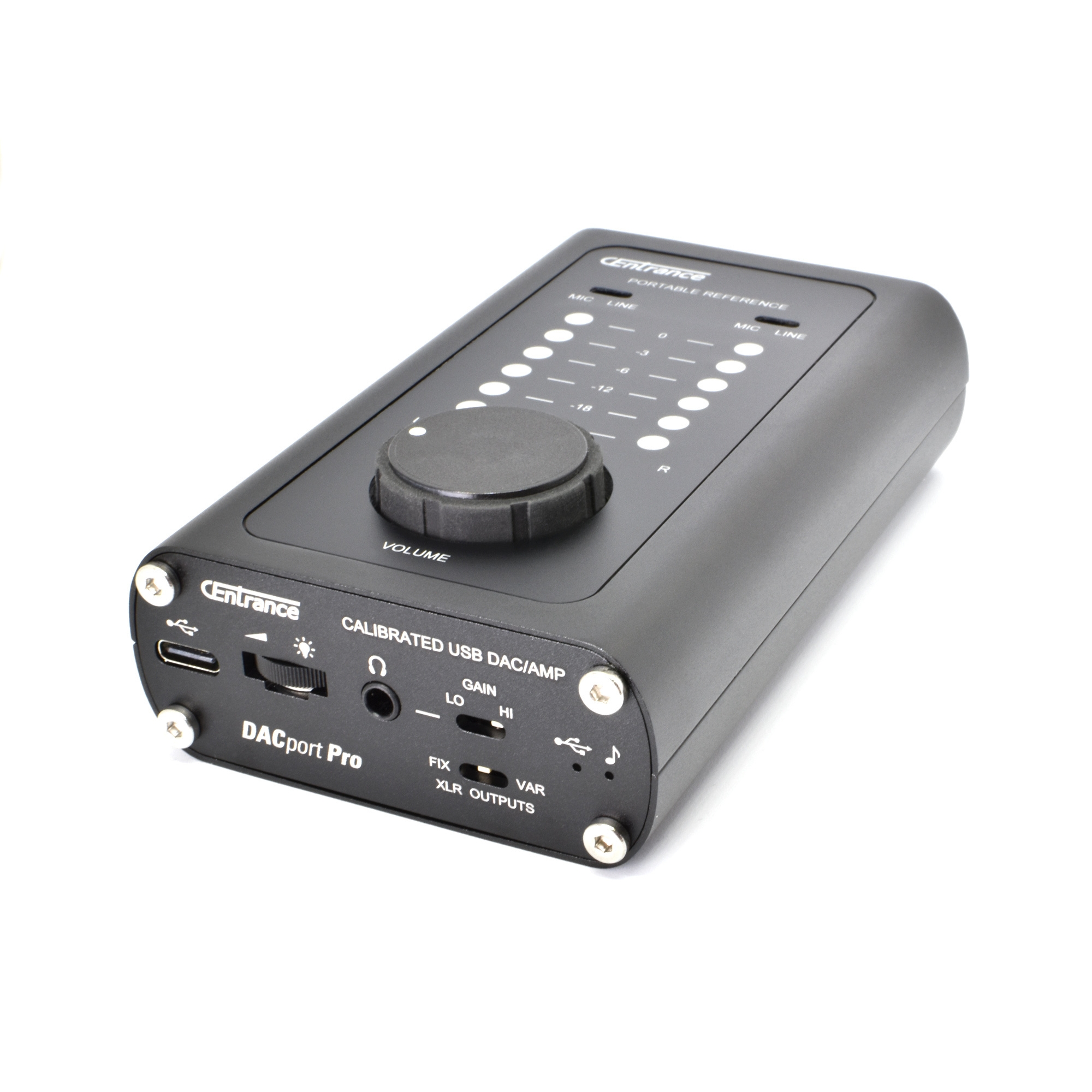

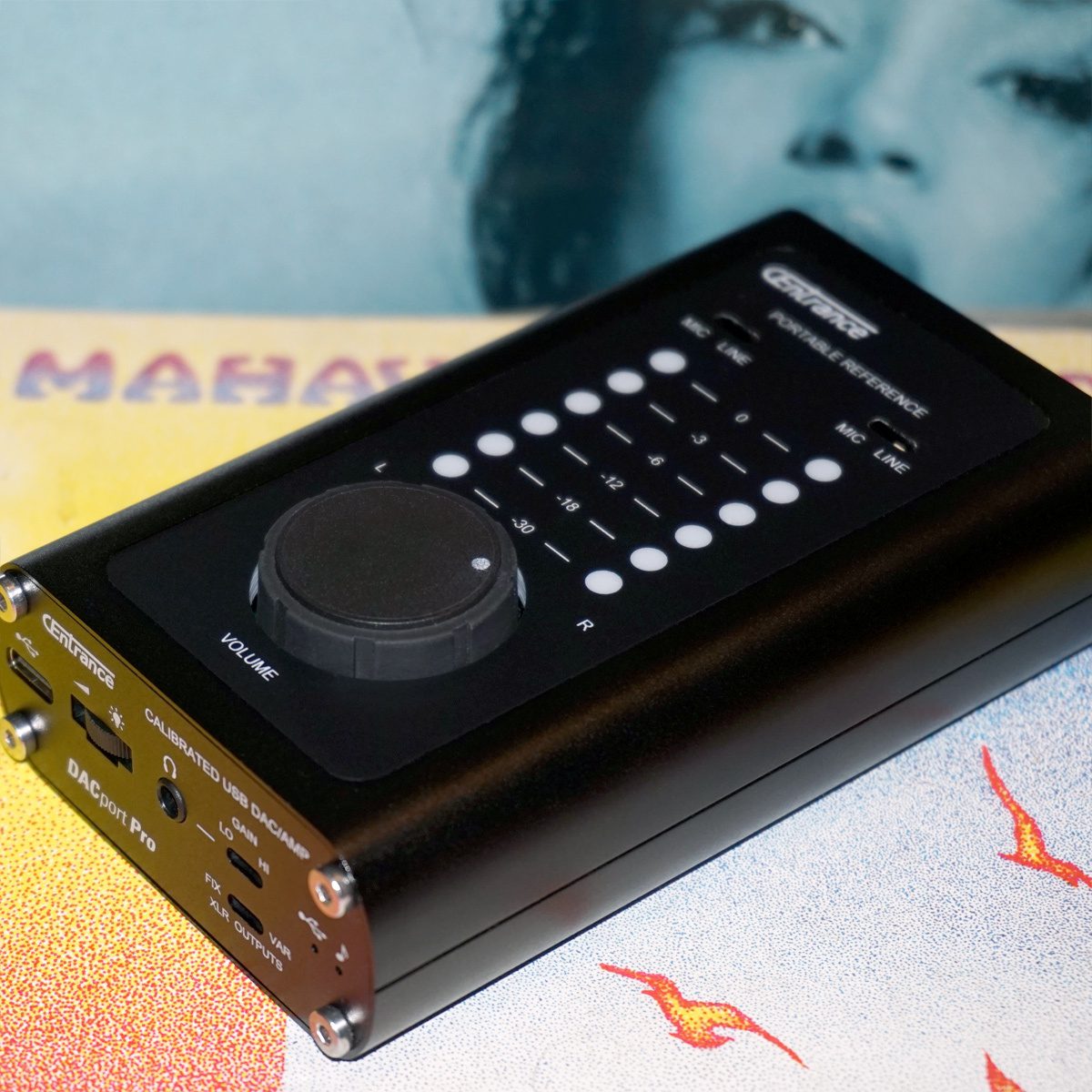

美國 CEntrance
DACport Pro
專業級手提DSD解碼連耳擴| Type-C輸入| 支援LINE/MIC XLR平衡輸出(Fixed/Variable) | 3.5耳機輸出| AmpExtreme™ Class A耳擴技術
- 喇叭 Speaker
Sound Bar / 家庭影院喇叭系統
電腦喇叭 PC Speaker
主動式喇叭 Active speaker (使用電源)
被動式喇叭 Passive speaker
便攜式藍牙喇叭 Portable Bluetooth Speaker
- 耳擴/解碼/轉換
解碼器連耳擴 DAC+AMP (手提/座枱)
數碼轉換器 DDC (手提/座枱)
純解碼 DAC (手提/座枱)
音響擴音機 AMP (座枱式)
純耳擴 AMP (手提/座枱)
精選貨品
-
Hiby - R6iii 發燒級手提音樂播放器 | 雙ES9039Q2M解碼 | DSD512, 32Bit/768kHz, MQA | WiFi, 雙向藍牙 | DLNA, AirPlay
$3,999
-
TOPPING - E70 VELVET 座枱解碼 | 前級功能(可切換) | AK4499EX | DSD512, PCM 32bit/768kHz | XMOS XU316 | 支援LDAC, aptX adaptive 藍牙接收
$3,668
-
美國CEntrance – DACport Pro 專業級手提DSD解碼連耳擴| Type-C輸入 | 支援LINE/MIC XLR平衡輸出(Fixed/Variable) | 3.5耳機輸出| AmpExtreme™ Class A耳擴技術
$2,998
-
- 音樂播放器 DAP/ 音響組合
便攜式 Portable
座枱式 Table
便攜式錄音機 Portable recorder
串流播放器 Streamer
播放器帶藍牙接收功能 Bluetooth receiver
音響組合帶FM收音機功能 FM Radio
- 無線/網絡轉接
藍牙接收器
網絡轉接器
藍牙發射器
藍牙接收+發射 (雙向)
最新產品
-
Hiby - R6iii 發燒級手提音樂播放器 | 雙ES9039Q2M解碼 | DSD512, 32Bit/768kHz, MQA | WiFi, 雙向藍牙 | DLNA, AirPlay
$3,999
-
Shanling - EC3 座枱CD機+USB音樂播放+藍牙接收 | ES9219C解碼, DSD256, 32bit/384kHz | 3.5耳機輸出 | 最高70mW＠32Ω | RCA,光纖,同軸輸出
$4,680
-
ikko - ITB03 便攜藍牙接收器連耳擴+USB解碼 | 4.4,3.5,光纖輸出 | 支援LDAC, aptX adapitve | 支援DSD,PCM | Type-C輸入
$1,198
-
美國CEntrance – DACport Pro 專業級手提DSD解碼連耳擴| Type-C輸入 | 支援LINE/MIC XLR平衡輸出(Fixed/Variable) | 3.5耳機輸出| AmpExtreme™ Class A耳擴技術
$2,998
ANALOG SPECS
|
|
|
|---|---|
|
Frequency Response
|
20 Hz…20 kHz ±0.2 dB
|
|
Dynamic Range
|
112 dB (re: +17.2 dBu, Line Level)
|
|
THD+N
|
0.001% (0dB FS, 1kHz, Line level)
|
|
Crosstalk
|
-127 dB (@ 1kHz, Line level)
|
|
Line-level Output (max)
|
+15 dBV / +17.2 dBu / 5.59 V rms, balanced
|
|
Mic-level Output (max)
|
-31.1 dBV / -28.9 dBu / 27.7mV rms, balanced
|
|
Headphone Output (max)
|
+8.4 dBV / +10.6 dBu / 2.63 V rms
|
|
Headphone Output Power
|
424 mW max total, @ 32 Ohm
|
|
Headphone Output Impedance
|
0.5 Ohm
|
|
Supported Headphones
|
16…600 Ohm
|
|
Headphone Gain Switch
|
20 dB range
|
|
Volume Control
|
Precision potentiometer with professional rotation force
|
|

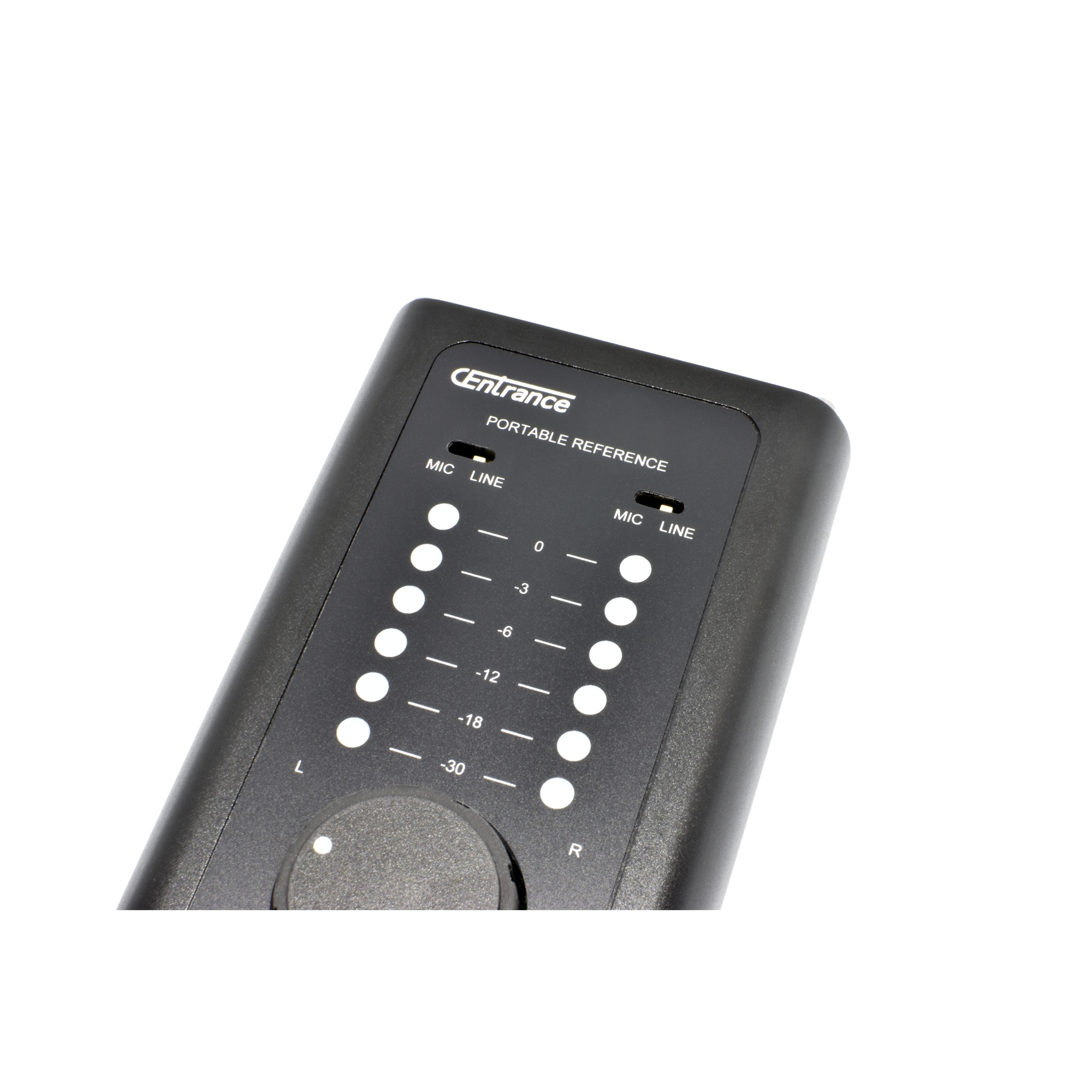

LED Level Meters
|
-30dB, -18dB, -12dB, -6dB, -3dB, 0dB (red), VU ballistics, Calibrated to FS, Adjustable brightness
|
DIGITAL SPECS
|
|
|
|---|---|
|
Max Resolution
|
32-bit (also supports 16-bit and 24-bit)
|
|
Max Sample Rate
|
384 kHz, DSD (also supports 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.2 kHz, 192 kHz, 352.4 kHz)
|
|
Clocking
|
Two custom, mil-spec clocks, 10 ppm precision, 1 ps jitter
|
|
Compatibility
|
Plug and play with MacOS, Linux, Windows (10+). ASIO Driver is available (Windows 10+)
|
|
USB Input
|
USB-C, asynchronous, fully compatible with USB 2.0 and 3.1
|
GENERAL SPECS
|
|
|
|---|---|
|
Power Supply
|
USB bus (no external power supply needed)
|
|
Required cable
|
USB-C cable, must be “Data cable”. “Charging-only” cables will not work.
|
|
Headphone Amp
|
Custom AmpExtreme™ technology with bipolar power supply
|
|
Analog Supplies
|
Battery-isolated, triple-filtered ±7 V analog power supply rails
|
|
Digital Supplies
|
Five independent, high-efficiency, switch-mode power supplies
|
|
Chassis Material
|
Aircraft-grade aluminum, hard-anodized for scratch resistance, black
|
|

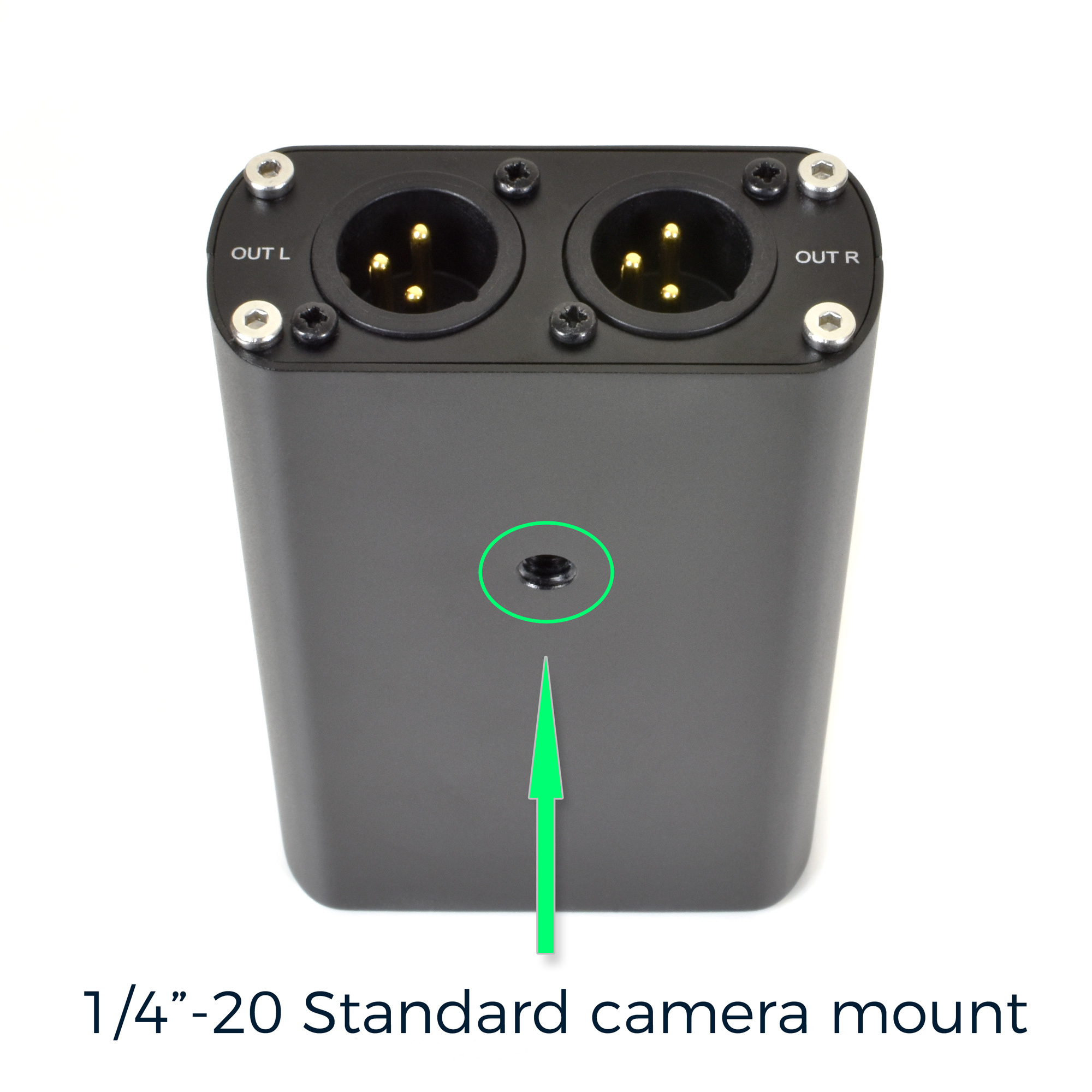

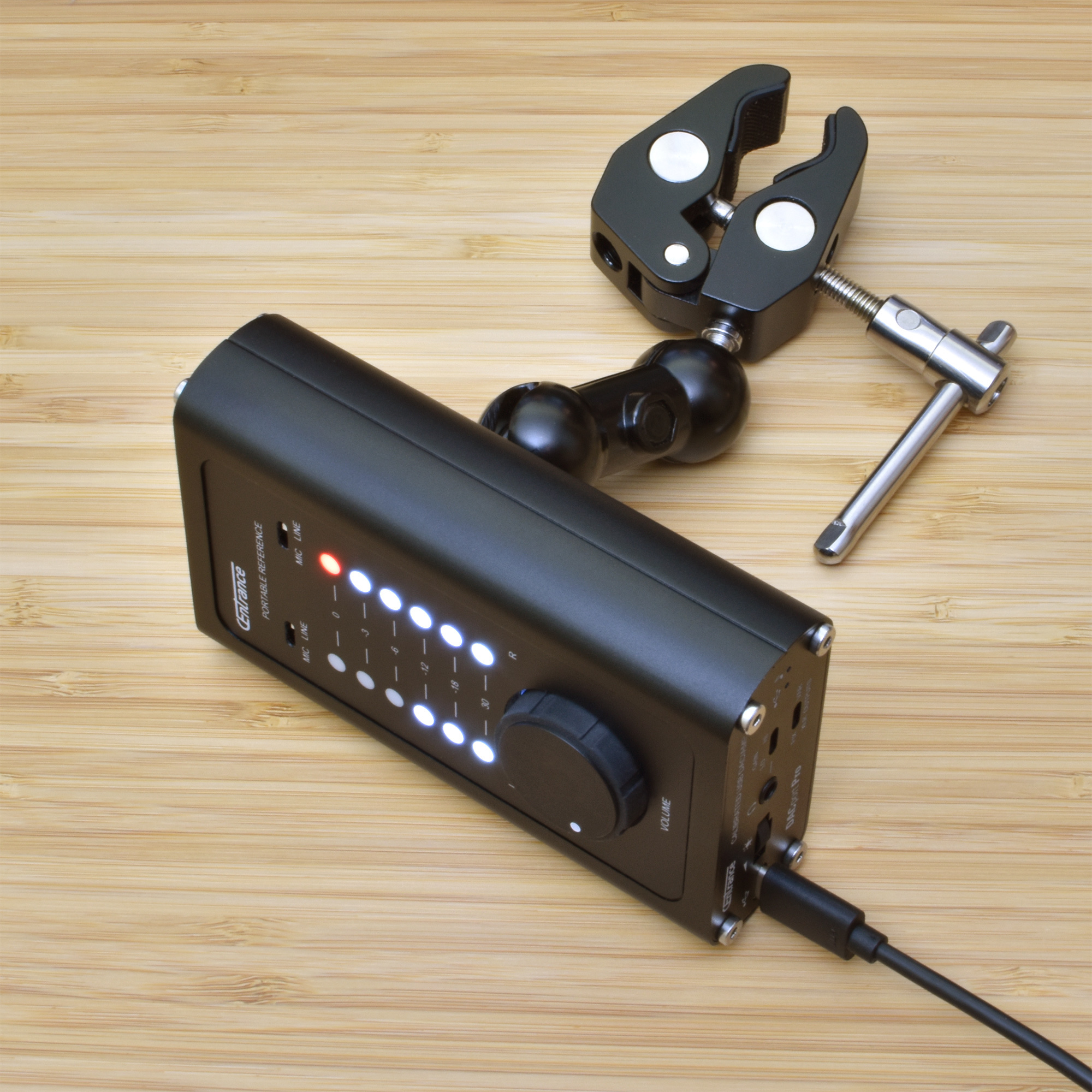

Mounting Thread
|
Standard 1/4″-20 Photo mounting thread, adaptable to tripods, mic stands, clamps, etc.
|
|
Unit Dimensions
|
121 mm (4.76″) (L), 70 mm (2.76″) (W), 36 mm (1.42″) (H)
|
|
Unit Weight
|
136 grams (4.8 ounces)
|
|
Box Dimensions
|
161 mm (6.33″) (L), 111 mm (4.37″) (W), 42 mm (1.65″) (H)
|
|
Included accessories
|
Quick Start Guide, Velvet carry pouch, USB-C cable with USB A adapter, Switch tool, Adhesive rubber feet
|
Specifications subject to change without notice as we continue to improve the product and production process
In stock
Additional information
| 品牌 | Centrance |
|---|---|
| 輸入 | USB (Type-C) |
| 輸出 | 3.5mm (Female), XLR 3-pin (Line Out), XLR 3-pin (Pre Out) |
| 設計類型 | 便攜式 |
| 支援格式-support-format | PCM, DSD |
| 特式 | 錄音室 |
