英國 iFi – ZEN DAC V2 小型桌上解碼連耳擴一體機 | 4.4mm 輸出 | 可前級輸出 | MQA Full Decoder | Bit-Perfect DSD,DXD

$1,399

Input USB3.0 B Socket
(USB2.0 compatible)
Formats DSD256/128/64, Octa/Quad/Double/Single-Speed DSD DXD(384/352.8kHz), PCM(384/352.8/192/176.4/96/88.2/48/44.1kHz) MQA
DAC Bit-Perfect DSD & DXD DAC by Burr Brown

Line Section

Output Audio RCA (SE) — 2.1V fixed
1V / 3.3V max. (variable)
4.4mm Pentaconn (BAL) — 4.2V fixed
2V / 6.2V max. (variable)
Zout <= 200 Ohm (BAL)
<= 100 Ohm (SE)
SNR < -116dB(A) @ 0dBFS (BAL/SE)
DNR > 116dB(A) @ -60dBFS (BAL/SE)
THD+N < 0.0015% @ 0dBFS (BAL/SE)

Headphone Section

Output Power (@1% THD) 4.4mm Pentaconn (BAL)
330mW@32 Ohm; 6.6V@600 Ohm;
16 Ohm – 600 Ohm Headphone6.3mm S-BAL (SE)
230mW@32 Ohm; 3.3V@600 Ohm
16 Ohm – 600 Ohm HeadphoneNote: Using 5v power. If powered from USB, power output may vary.
Output Impedance < 1 Ω (BAL/SE)
THD & N < 0.005% (125mW @ 32R)
SNR > 113dBA (6.2V BAL/3.3V SE)
Power consumption < 1.5W via USB power OR 5v DC (power supply not included)
Dimensions 160(w) x 117(d) x 35(h) mm
6.3″ x 4.6″ x 1.4″
Weight (Gross) 0.8 kg (1.8 lbs)
Warranty period 12 months

In stock

Description



英國 iFi

ZEN DAC V2

小型桌上解碼連耳擴一體機 | 4.4mm 輸出 | 可前級輸出 | MQA Full Decoder | Bit-Perfect DSD,DXD



Added oomph!

This ZEN DAC V2 is the same award-winning hi-res USB DAC/headphone amp as before but with added oomph!

We’ve upgraded its digital engine from an 8 core XMOS chip to a 16 core chip. It’s ultra-capable while still being super-affordable.

Compact enough to use as a USB DAC/amp on your work desk and stylish enough to use at home with your favourite active speakers or amp, it delivers a level of specification and performance that punches above its super-affordable price tag.

The ZEN DAC V2 supports PCM and DXD to 32-bit/384kHz, DSD256 and MQA. DSD remains ‘bit-perfect’ thanks to the True Native Burr-Brown chip design.





16 core = hardcore.

Thanks to the 16 core tech, the ZEN DAC V2 is now an MQA Decoder rather than a Renderer only.

This enables you to play back MQA audio files and streams, delivering the sound of the original master recording. The LED glows green or blue to indicate that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. It glows blue to indicate it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner.

MQA rendering technology (used in the original ZEN DAC among other iFi products) connects to an MQA Core signal (such as TIDAL) and completes the final unfold of an MQA file. Usually, the computer has carried out the decoding.



Smooth and balanced.

A new and improved low jitter, crystal clock means >20dB better performance. The super-low noise performance means the ZEN DAC V2 will remain quiet even in noisy situations such as yachts or RVs.

The balanced design for the analogue stage – rare and not found at this price point – makes it pretty special and delivers the best sound quality, normally found in higher priced models.

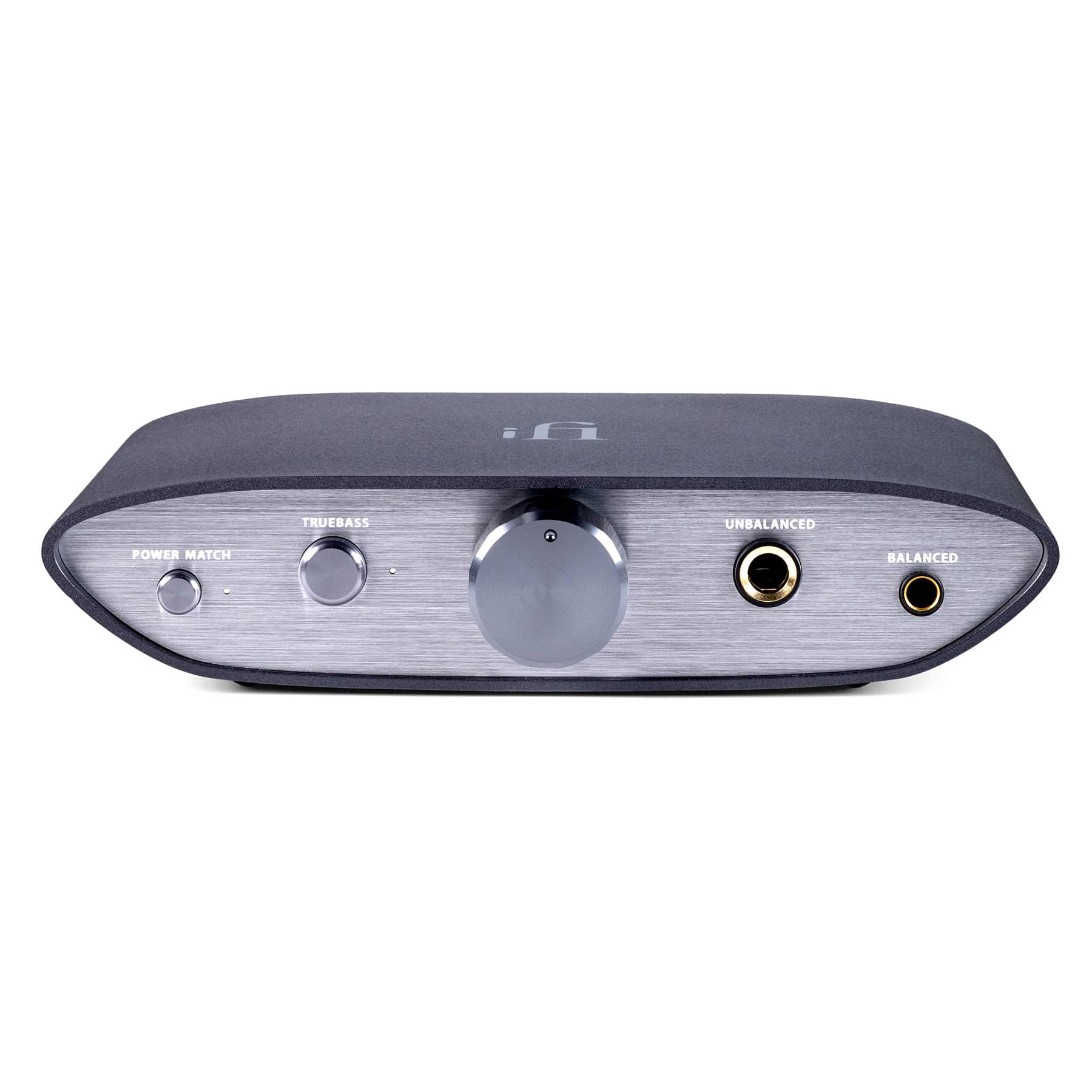

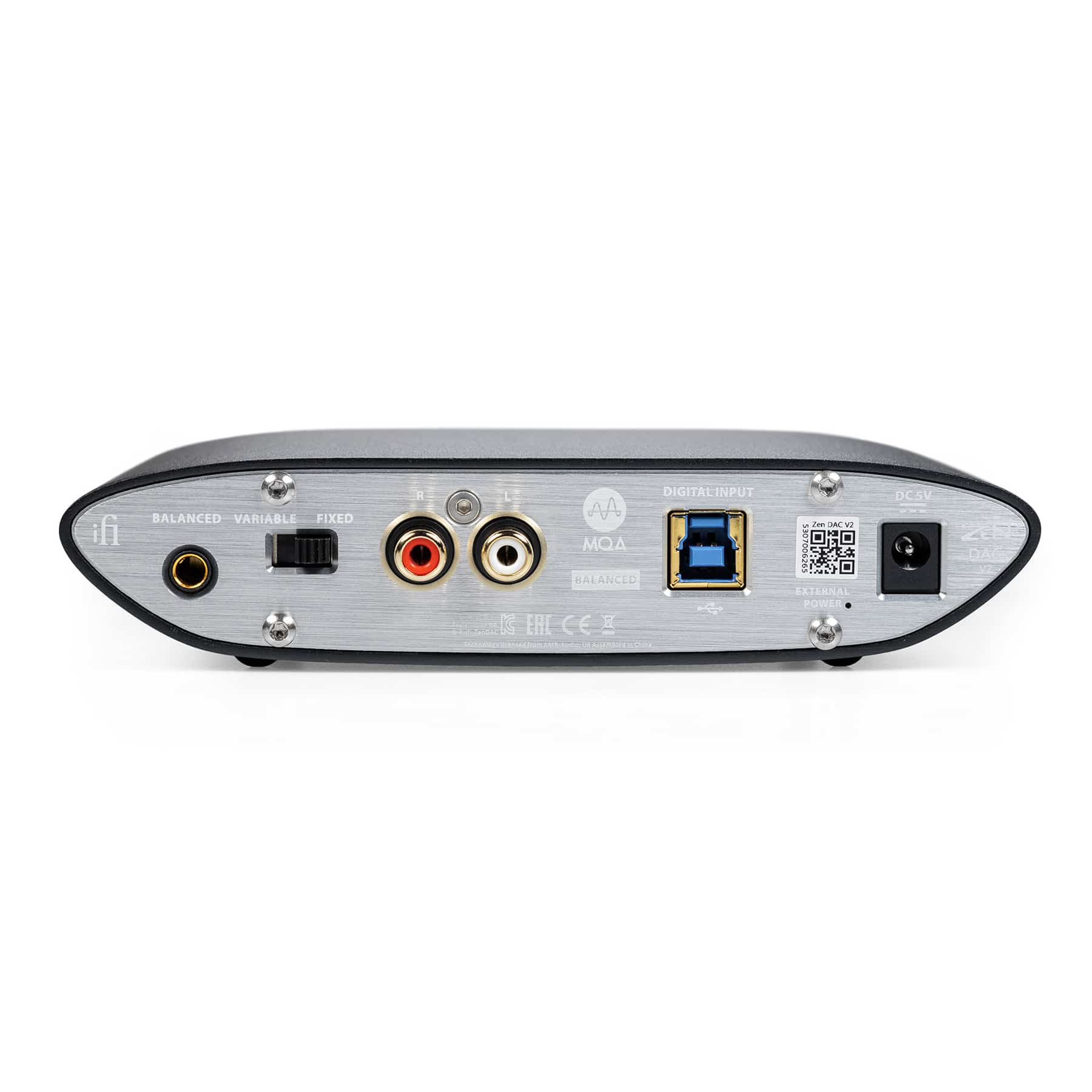

The ZEN DAC V2 sports Pentaconn 4.4mm balanced outputs at both the front and back. On the front, there’s also the popular 6.3mm headphone socket.











Additional information
品牌

iFi audio

輸出

4.4mm 平衡, 6.3mm, RCA (Line Out), RCA (Pre Out), 4.4mm 平衡 Line out

輸入

USB 3.0 (Type B) (Female)

連接

有線
