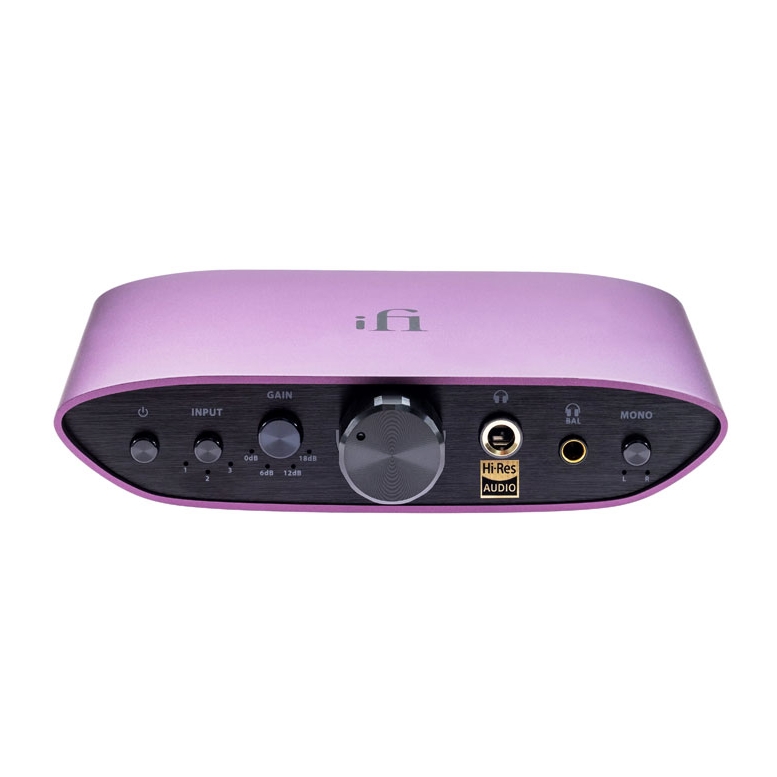

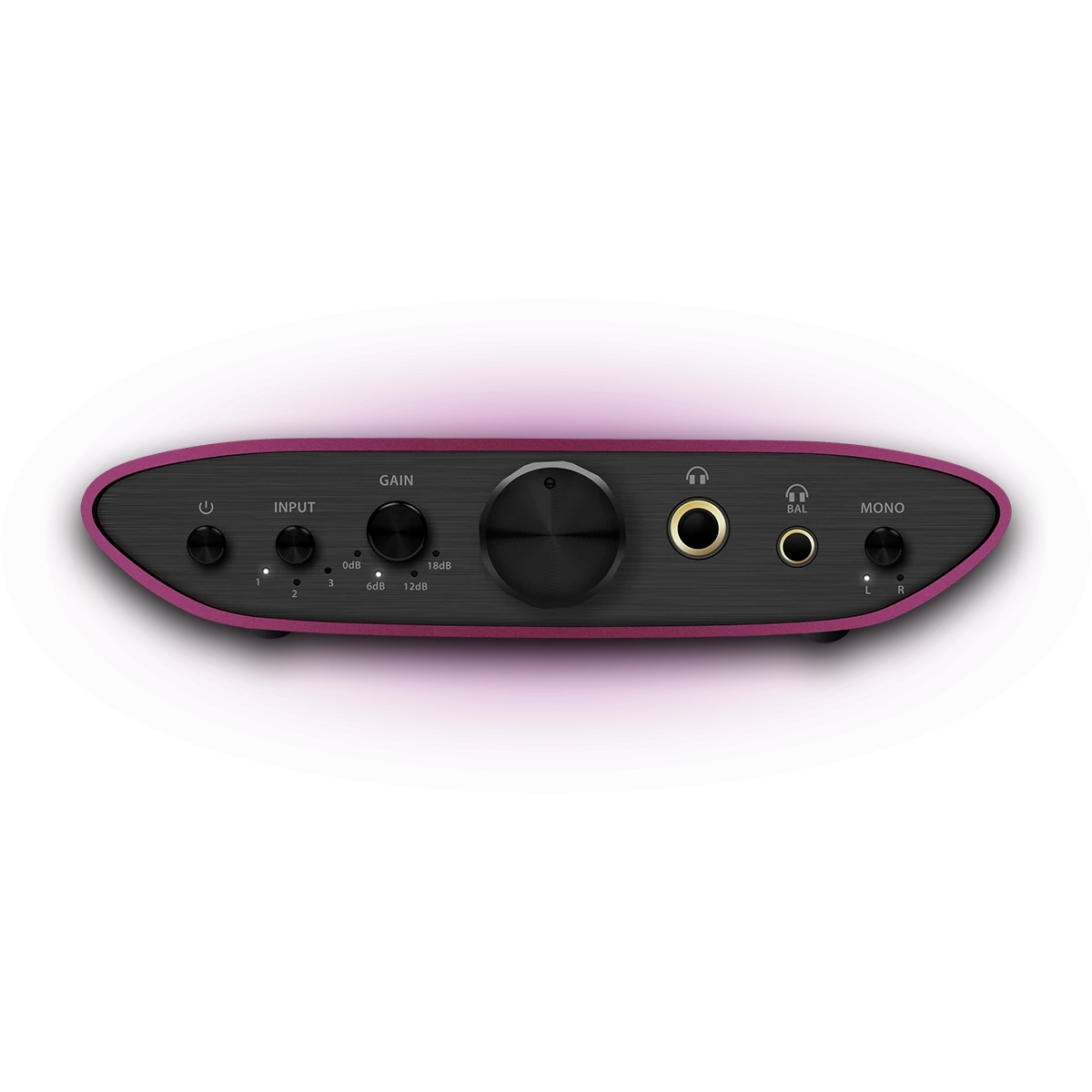

英國 iFi – ZEN CAN Studio 專業級全平衡耳擴 | 4.4, 6.3耳機輸出 | 4級增益 | XLR 3-pin x2, 6.3 TS x2, 4.4, 3.5 立體聲輸入 | MONO 單聲道輸出模式(可切換)
$2,099
| Input | 4.4mm 3.5mm XLR/6.3mm 6.3mm pinout |
4.0Vrms (nom.) @ 0dBFS, 24kΩ balanced 1.0Vrms (nom.) @ 0dBFS, 1MΩ UnBAL 4.0Vrms (nom.) @ 0dBFS, 24kΩ balanced TRS: +, -, Gnd; compatible with TS: +, Gnd Separate left and right connectors |
| Max. Input | 4.4mm 3.5mm XLR 6.3mm |
7.4V RMS 1.92V RMS 7.4V RMS 7.4Vrms balanced/3.8Vrms UnBAL |
| Max Output | Balanced | >15.2V/385 mW (@ 600Ω) >11.0V/1890 mW (@ 64Ω) |
| UnBAL | >7.6V/196 mW (@ 300Ω) >4.0V/1000 mW (@ 16Ω) |
|
| Output Impedance | Balanced UnBAL Line |
<2Ω <1Ω <200Ω |
| THD + N | Balanced UnBAL |
<0.006% (@360 mW/2.4V 16Ω) <0.005% (@ 100 mW/1.27V 16Ω) |
| SNR | Balanced UnBAL |
>122dBA (@7.3V) >120dBA (@ 1.9V) |
| Gain | OdB, 6dB, 12dB and 18dB | |
| Frequency Response | 10Hz-200kHz (±0.03dB) | |
| Power supply requirement | DC 5V/2.4A (centre +ve) | |
| Power consumption | No Signal ~5W/Max Signal ~13W | |
| Dimensions | 158×121 x 35 mm (6.2″ x 4.8″ x 1.4″) | |
| Net weight | 530g (1.17 lbs) | |
| Limited Warranty | 12 months |
In stock
Additional information
| 品牌 | iFi audio |
|---|---|

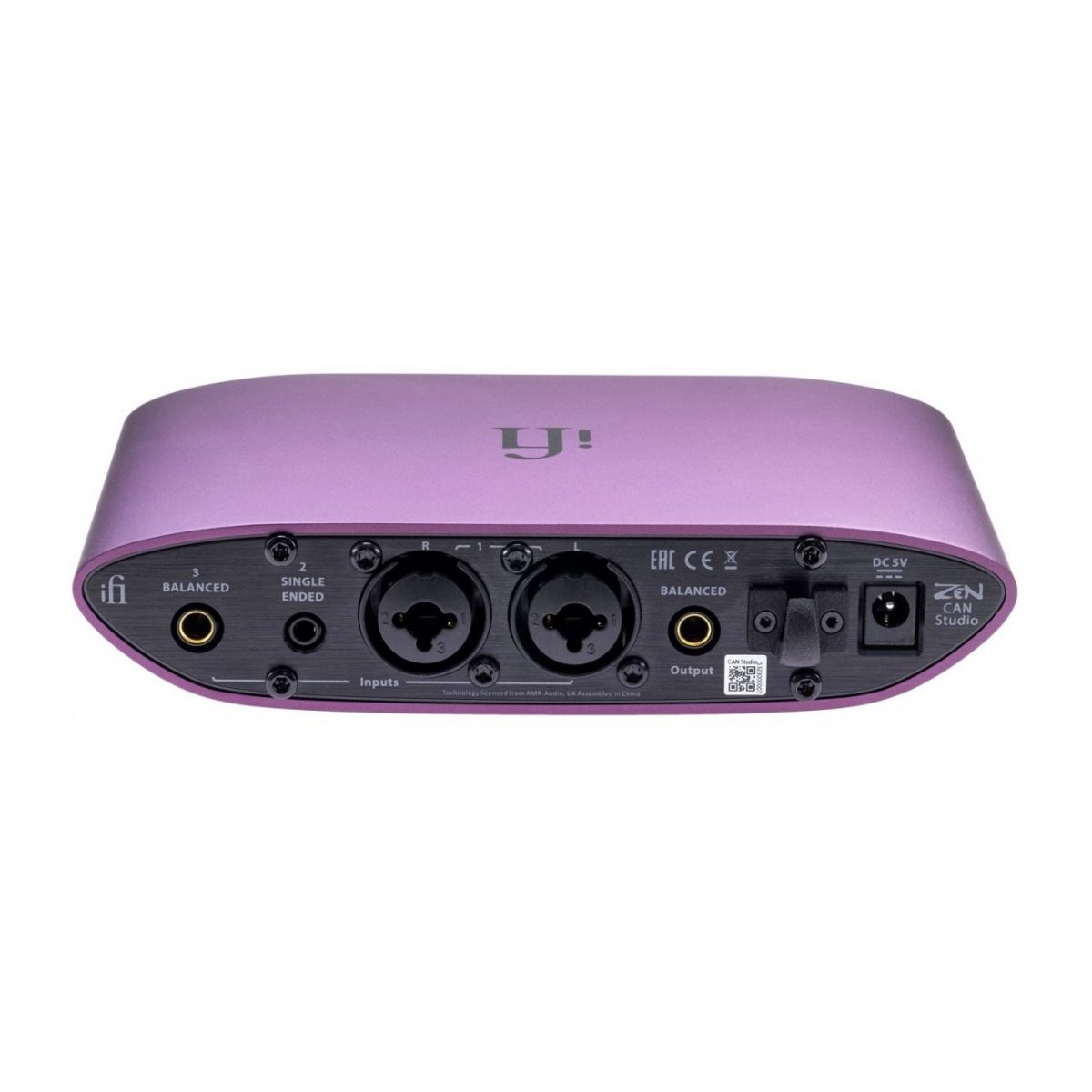

| 輸入 | 3.5mm, 2x 6.3mm TRS, 4.4mm 平衡 (Female), XLR 3-pin (Female) |
| 輸出 | 4.4mm 平衡, 6.3mm, 4.4mm 平衡 Pre-out |
| 連接 | 有線 |
